Specification profile · not tested by us
ALL-TOP ALL-TOP 4 Way Inflation System
Multi-tire kit · $189.99

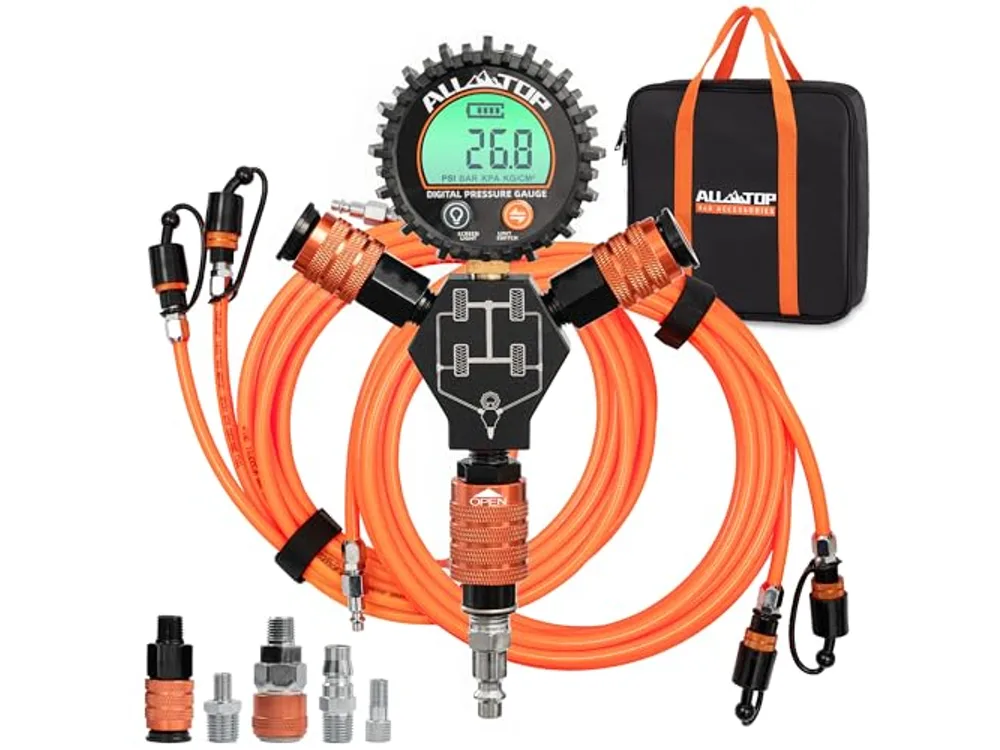

Manufacturer images
ALL-TOP’s own product photographs. We have not photographed this product ourselves, so these show it as the manufacturer presents it.
Published specifications
Read from the manufacturer’s listing. A dash means the manufacturer does not publish that field — we do not estimate it.
| Type | Multi-tire kit |
|---|---|
| Stop pressure | — |
| Stops by itself | No |
| Gauge included | Yes (digital) |
| Stated stop-pressure accuracy | — |
| Valve connection | Push-on lock-on air chuck |
| In the box | 4-tire kit |
| Hose | — |
| Published price | $189.99 |
| Manufacturer says it suits | overlanding trips, off-road driving, F-150, Wrangler/Bronco 4-door, Tundra wheelbases |
| Gauge range | max 200 PSI |
| Claimed gauge accuracy | ±0.1 PSI |
| Hose working pressure | up to 300 PSI |
| Wheelbase coverage | up to 200 in |
What ALL-TOP claims
These are the manufacturer’s own claims, quoted from its listing. They are not our measurements — we have not tested this unit. On the inflators we have tested, our own fill times are published in the review instead.
- Quickly and accurately inflate and deflate 1-4 tires simultaneously with +/-0.1 PSI precision. Automatically equalise pressure in all connected tires.
Other ALL-TOP models we hold specifications for
Features the manufacturer lists
- Inflate and deflate 1–4 tires simultaneously
- Automatically equalises pressure across the connected tires
- Built-in backlit digital gauge, max 200 PSI
- Quick-Stop slider on the manifold
- Auto shut-off couplers so disconnecting does not leak
- Push-on lock-on air chucks with a rubber protector on each hose end
- TPU braided hose, working pressure limit 300 PSI
- Fits vehicles up to a 200-inch wheelbase
- Six adaptor types included
- Runs on 2 x AAA batteries, not included
