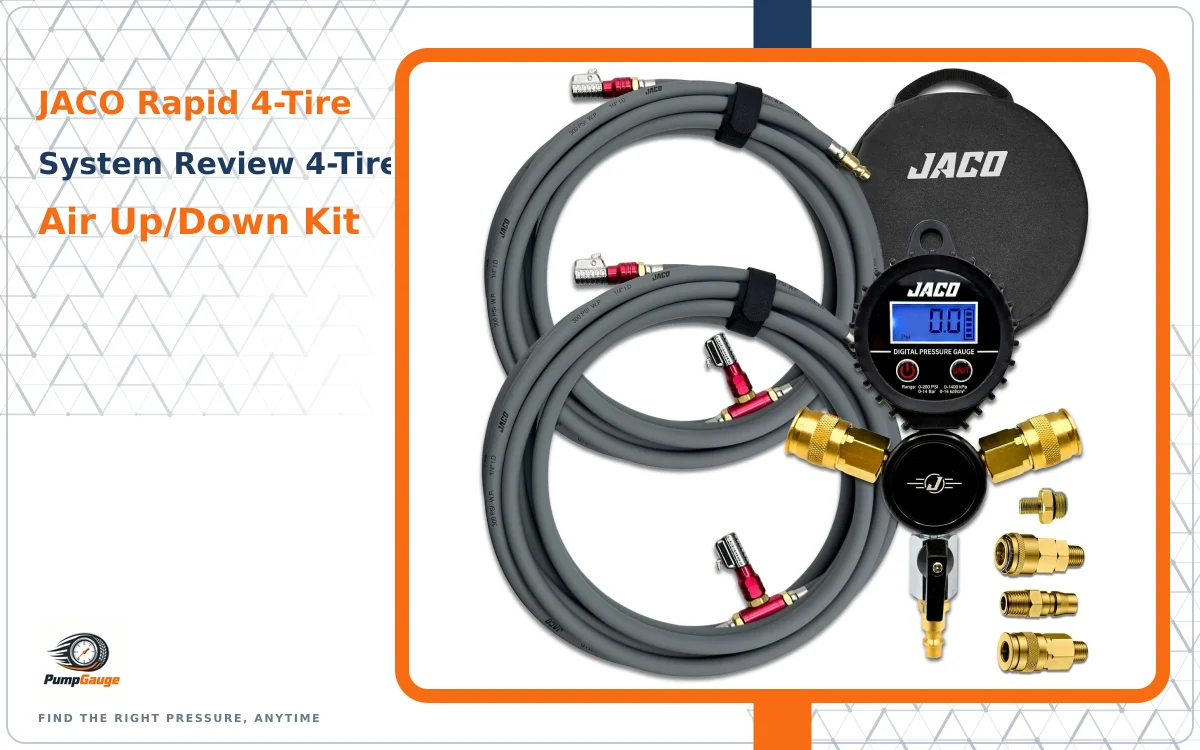

JACO Rapid 4-Tire System Review: 4-Tire Air Up/Down Kit
A 4-tire air-up and air-down kit with a digital manifold gauge, push-to-lock chucks, and a 157-inch wheelbase hose reach — listed at $199.90 with a 5-star rating from 5 owner ratings.
Overview
The JACO Rapid 4-Tire Inflation/Deflation System with Lightning Air Chucks (model JSP-4X4) is a manifold-based air-up and air-down kit for off-road 4x4s. It lists at $199.90, which is also its historical low, and carries a 5-star rating from 5 ratings in the supplied data.
The core idea is simple: connect 2, 3, or all 4 tires at once and let the manifold equalize pressure across them, so you are not chasing individual tires with a gauge. That matters most on air-down, where matched PSI across four tires is the difference between a predictable contact patch and one corner dragging.

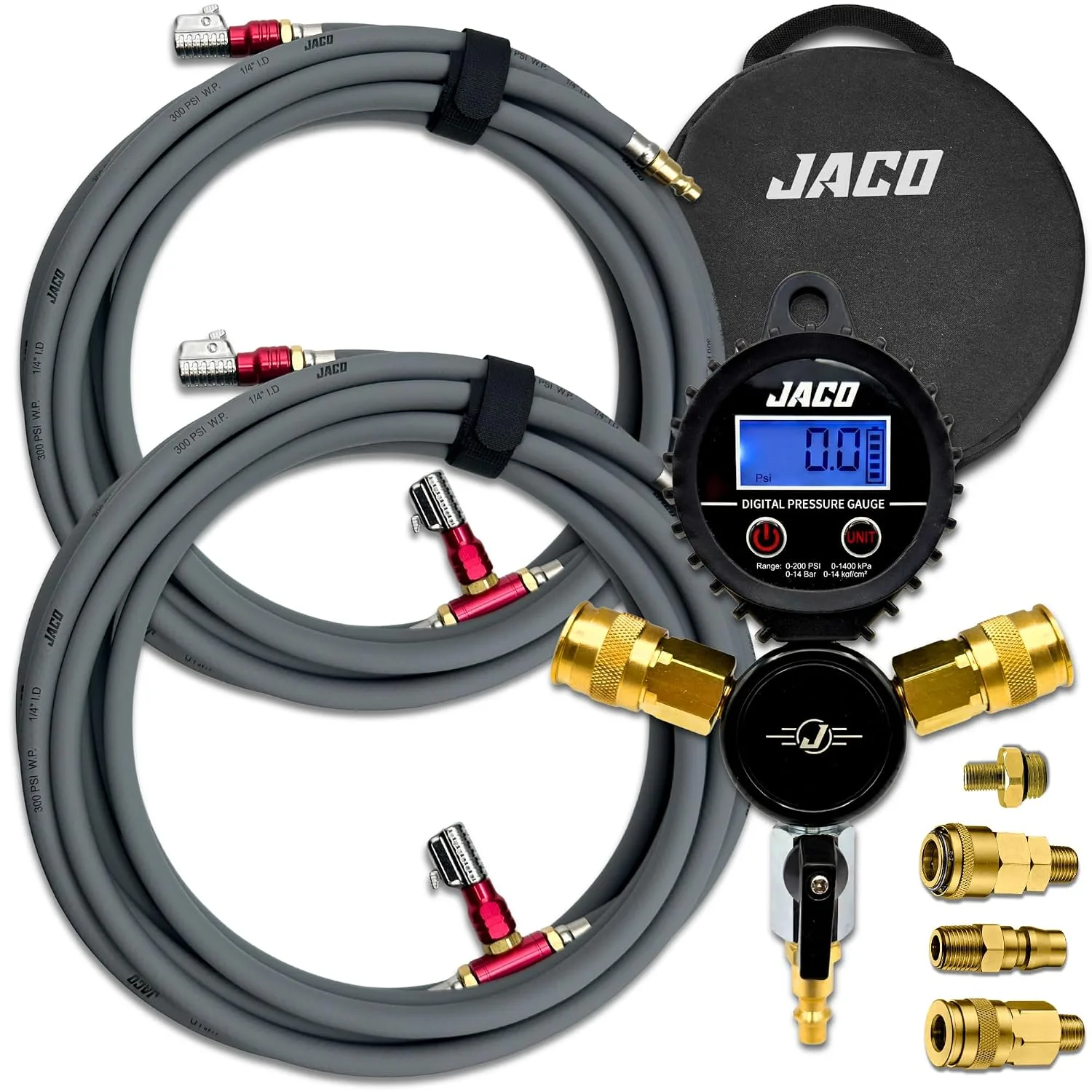

What you get in the box
The kit is built around a digital manifold gauge that reads up to 200 PSI and is calibrated to ±1% full-scale accuracy. An integrated heavy-duty ball valve gives immediate on/off airflow control at the manifold, which is the part you actually touch with cold hands on a trail.
The hose kit is proprietary rubber polymer, rated to stay flexible in freezing cold or extreme heat, and fits trucks and SUVs up to a 157-inch wheelbase. A 5-piece 1/4-inch NPT air fittings kit with thread seal tape is included for compressor compatibility.
Construction is aluminum and brass, and the unit weighs 10.4 ounces. UPC 860014505904, ASIN B0FPRN23R1.
Lightning Air Chucks
The patented push-to-lock chucks seal onto the valve and release with a button press. JACO claims zero air loss on release and describes them as faster and more secure than standard clip-ons.
Owner feedback backs the sealing claim. Ethan Hall, a verified purchaser, wrote that "the quick release valves were flawless and leak free" after his first off-road trip with the kit.
Owner trail feedback
Joyceline kalu Soriano, a verified purchaser, runs the system on two vehicles: "This JACO 4 tire inflation system is a really useful setup for my Jeep and my FJ, we also have onboard air. I like being able to connect all four tires at the same time instead of having to inflate or deflate each tire individually."
Ethan Hall's take on build quality: "Hardware and hoses are very high quality, and the gauge was dead on accurate against my other gauges." He added a durability caveat worth repeating: "I take good care of my gear and don't throw it around and abuse it. So time will tell on how it holds up."
Who it fits
If you air down and air up four tires every trip, the time savings come from the manifold equalization and the push-to-lock chucks, not from a faster compressor. The 157-inch wheelbase rating covers most full-size trucks and SUVs; shorter rigs have hose to spare.
If you only air down occasionally, or you run a single-tire inflator you already trust, the $199.90 price is harder to justify. The kit assumes you want matched PSI across all four corners as a routine, not an exception.
Specs at a glance
- Price: $199.90 (historical low $199.90)
- Rating: 5 out of 5 from 5 ratings
- Gauge: digital, up to 200 PSI, ±1% full-scale accuracy
- Hose reach: fits trucks and SUVs up to 157-inch wheelbase
- Fittings: 5-piece 1/4-inch NPT kit with thread seal tape
- Material: aluminum and brass
- Weight: 10.4 ounces
- Model: JSP-4X4 | UPC: 860014505904 | ASIN: B0FPRN23R1
JACO Rapid 4-Tire Inflation/Deflation System with Lightning Air Chucks
Highlights
- 4-tire manifold
- Lightning chucks
- Digital central gauge
- Inflate + deflate
Best for
- Jeep / overland rigs airing four tires at once
- Owners with onboard air who want a clean manifold
- Trail days where hose quality and leak-free QDs matter
Strengths
- Inflate or deflate all four corners from one manifold instead of tire-by-tire
- Lightning chucks and QDs praised as leak-free when cared for
- Digital central gauge reads close to owners’ other reference gauges
- Hose / hardware feel matches other JACO trail tools people already own
Watch-outs · not ideal when
- Setup time and hose management before the first fill
- Premium kit price vs single-tire deflators
- Longevity under abuse is unproven if you thrash it — treat as trail gear
- Needs a capable air source; the manifold is not a compressor
Owner voices
Short takes from public retail reviews — paraphrased or translated when long or non-English; meaning kept close to the original.
“First trail weekend: solid hoses, gauge matched my others, and the quick releases stayed leak-free.”
“Same reliability as my older JACO core tool — takes a minute to set up, then four tires move together.”
“Ball-valve manifold and Lightning chucks beat my older sliding-sleeve kit for Jeep and FJ air-ups.”
Method and sources
This guide is built from product data and list prices pulled from Affiliate Hub at build time, together with owner feedback we summarize on the cards. It is catalog-backed buying help, not a lab ranking of every model.
Read how we test for the protocol behind any measured figures we still cite in Guides & Tips.
