JACO RDX-160 Presta Tire Pressure Gauge review: what you get

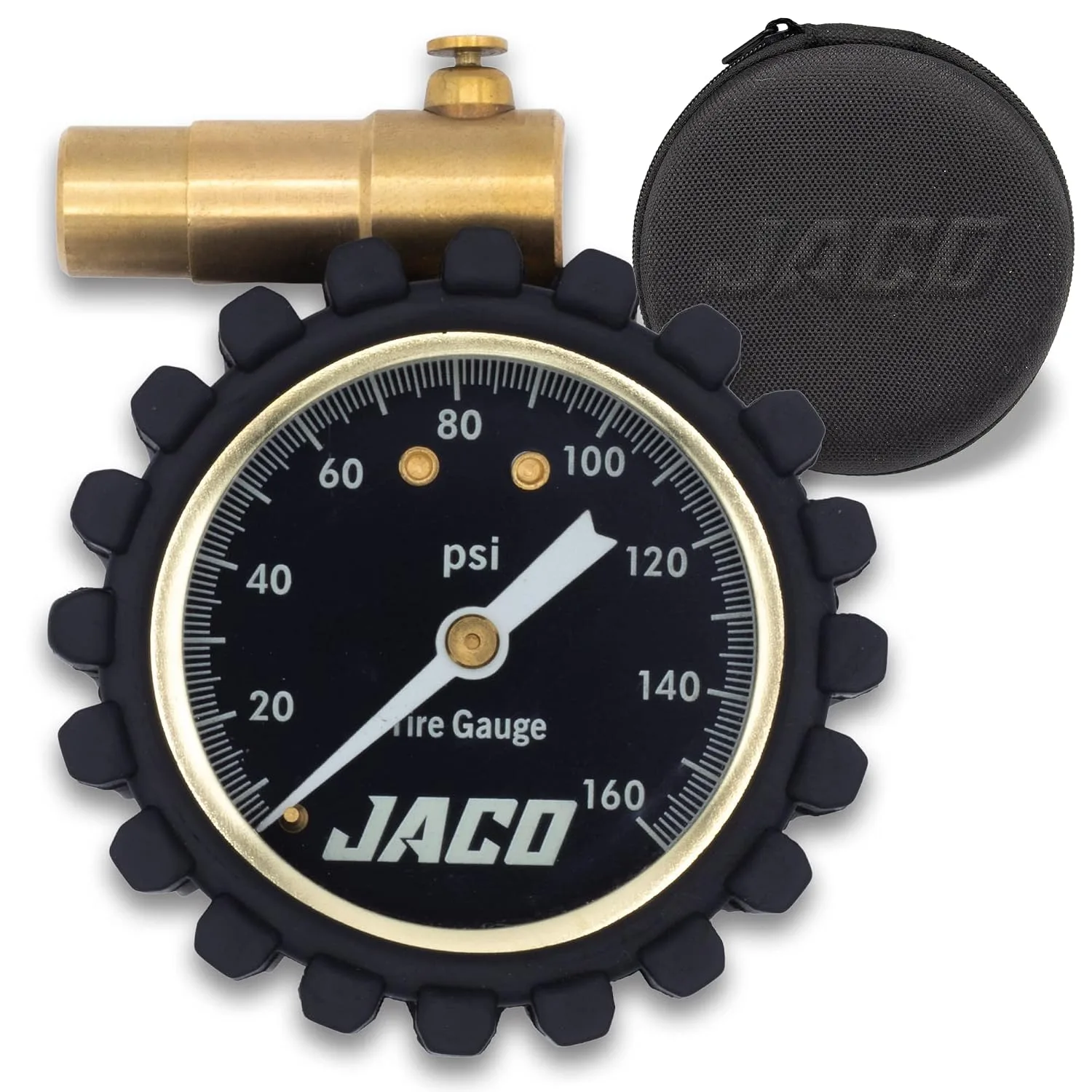

The JACO RDX-160 Presta Tire Pressure Gauge is a battery-free dial gauge for Presta valves, listed at $22.90. It reads 10–160 PSI on a 2-inch glow-in-the-dark dial and is calibrated to ANSI B40.1 standards at 1.5% mid-scale accuracy, per the manufacturer. The package includes a hard-shell storage case and a Presta tire gauge; it is not compatible with Schrader valves.
For riders who check pressure before every ride, the key details are the 160 PSI ceiling, the lock-on dial reading, and the built-in bleeder valve. Owner reviews back up the fit and bleed control: one 5/5 reviewer wrote that it fits the Presta valve stem without losing air and that the reading holds until manually released. Another 5/5 owner said air loss when disconnecting is minimal.
JACO RDX-160 Presta Tire Pressure Gauge
Highlights
- Dial gauge
- Check gauge
- Multi-PSI scale in product name
- About $22.90 list
Best for
- Monthly cold placard checks on daily drivers
- Glovebox analog when you refuse dead batteries
- Quick cross-check against TPMS
Strengths
- Analog dial stays usable after years of heat without a coin-cell death
- JACO check gauges are built for the monthly PSI routine, not trail air-downs
- Cheaper and more accurate day-to-day than trusting TPMS alone when all four tires drop together
- Light enough to keep permanently in the car
Watch-outs · not ideal when
- Dial needles can stick off zero after a drop — always check return-to-zero
- Not a compressor — you still need a way to add air
- Large RV / high-range faces are awkward for everyday 32–35 PSI car work
- Always cross-check a new gauge against a known-good one before trusting it alone
Owner voices
Short takes from public retail reviews — paraphrased or translated when long or non-English; meaning kept close to the original.
“5/5 — I've been an active road and off-road cyclist for over 40 years and this is my first gauge. And I'm glad I bought it. Assuming that the Jaco is accurate, my floor pump's gauge reads a full 20 psi higher than the…”
“5/5 — It fits on the Presta valve stem without losing air: positive, no sticking, just accurate machining. Displays reading until you manually release the pressure. Can modulate intentional air release from tire in sm…”
“5/5 — This is a well designed, easy to read, reliable presta valve pressure gauge. I've owned and used many makes/models over the past 60 years (going back to late 60's Silca and Dunlop models). This is probably my fa…”
Accuracy and calibration
JACO states the RDX-160 is performance tested and calibrated accurate to ANSI B40.1 standards at 1.5% mid-scale. That is a manufacturer claim, not an independent test result. The dial covers 10–160 PSI, which suits high-pressure road tires and covers most mountain and gravel pressures.
Owner reviews support the accuracy claim in practice. A 5/5 reviewer with 40 years of cycling said the gauge read 20 PSI lower than their floor pump, suggesting the pump was the outlier. Another long-time rider called it accurate and easy to read. One 1/5 review reported the dial dropping to zero immediately after removal from the valve stem, which points to a possible seal or bleed defect in that unit.
Bleed control and chuck seal
The built-in bleeder valve lets you release air from an overinflated tire in small increments. The 90-degree direct Presta nozzle is shaped to fit between spokes. The gauge head has a shock-resistant rubberized cover, and the body is brass.
Owner feedback on the chuck seal is mostly positive. A 5/5 reviewer described the fit as positive, with no sticking and accurate machining. The same reviewer noted they could modulate intentional air release in small increments. A separate 5/5 owner said air loss on disconnect is minimal. The 1/5 review is the exception: that unit would not hold a reading after removal, which is the opposite of the intended lock-on behavior.
Readability and build
The 2-inch dial is glow-in-the-dark and uses a 10–160 PSI scale. The reading locks on the dial face until you press the pressure reset button to zero it. That matters when you are crouched at a wheel and cannot hold the gauge in view.
The gauge weighs 6 ounces and measures 3 x 1 x 3 inches, so it stores in a riding bag or tool kit. The included hard-shell zip case protects it between rides. JACO backs it with a lifetime warranty in the USA and Canada covering performance-related issues.
Who it is for
This gauge is for Presta valve users who want a battery-free, high-pressure dial with bleed control. It is not for Schrader valves. If you already own the low-pressure JACO version for mountain bike tires, one 5/5 reviewer owns both and still rates this one highly.
At $22.90 with a 4.4-star average from 324 ratings, the RDX-160 sits in the mid-range for a dedicated Presta gauge. The main risk shown in owner reviews is a unit that does not hold pressure after removal; JACO's lifetime warranty is the backstop for that.
