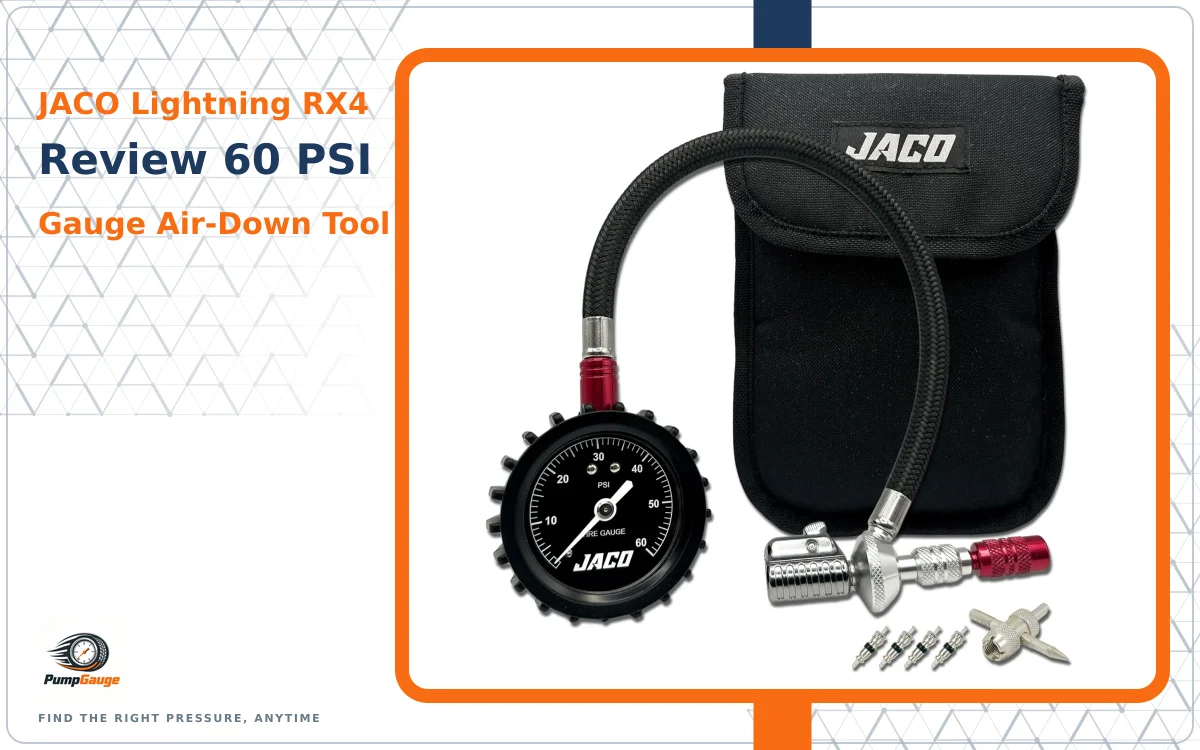

JACO Lightning RX4 Review: 60 PSI Gauge Air-Down Tool
A gauge-focused look at the JACO Lightning RX4 Tire Deflator: 60 PSI readable scale, ANSI B40.1 calibration claim, quick-connect chuck seal, and what 103 owner ratings at 4.8/5 actually say.
JACO Lightning RX4: the short answer
The JACO Lightning RX4 Tire Deflator with Gauge is a valve-core-removal air-down tool with a built-in 60 PSI gauge, listed at $69.99 and currently selling for $59.90 — which the supplied data also shows as its historical low. It carries a 4.8/5 rating across 103 ratings.
For a gauge specialist, the two numbers that matter most are the 60 PSI readable range and the ANSI B40.1 calibration claim. Everything else — the push-to-lock nozzle, the quick-release button, the included valve cores — exists to serve those two numbers without letting air escape where you don't want it to.

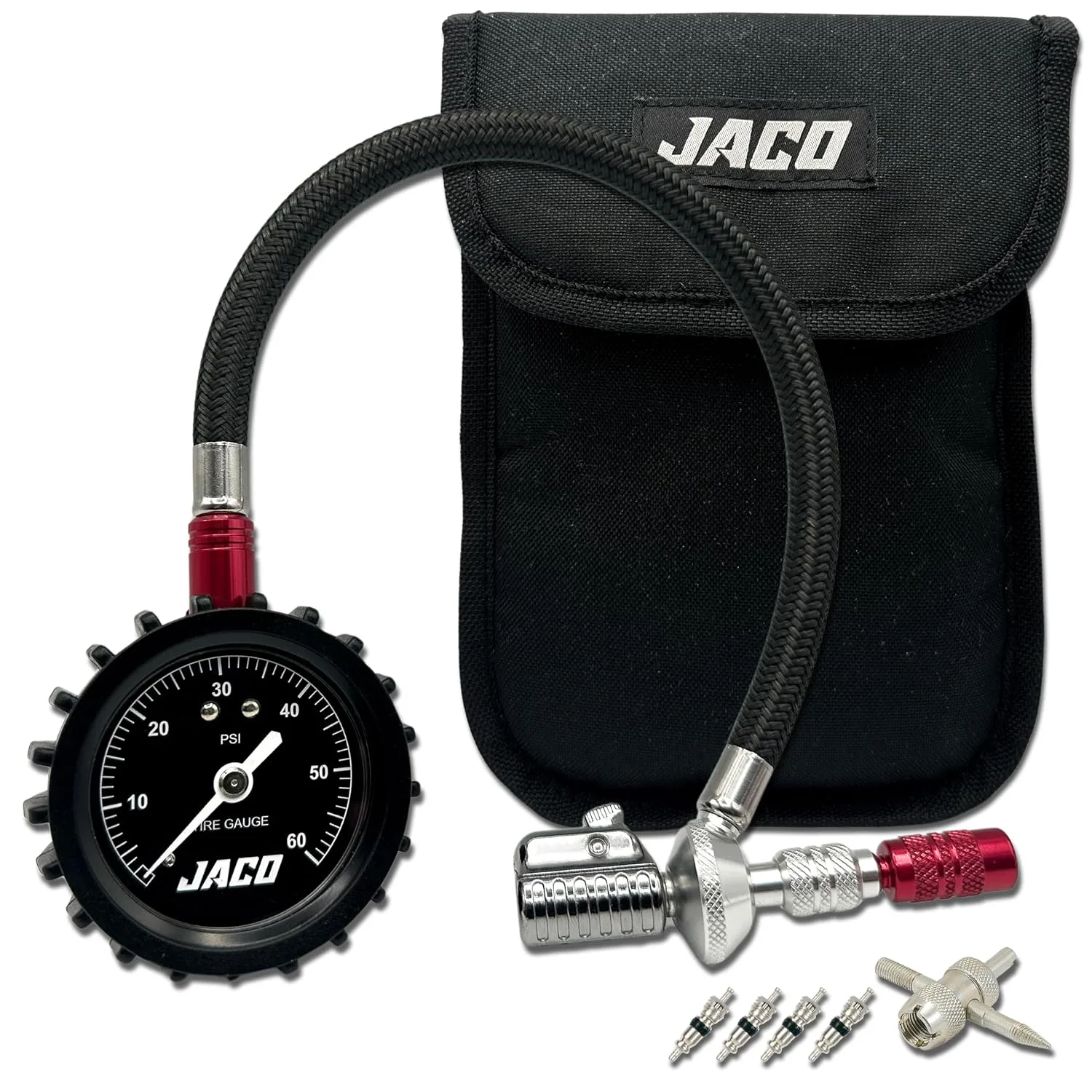

JACO Lightning RX4 Tire Deflator with Gauge
Highlights
- Multi-tire air-down / inflate kit
- Manual trail control
- On-tool gauge readout
- About $69.99 list
Best for
- Airing four corners together on trail days
- Overlanders who already carry onboard or portable air
- Drivers OK watching the gauge while air dumps
Strengths
- Moves multiple tires in one setup instead of walking the truck tire-by-tire
- On-tool gauge keeps PSI visible while you dump or fill
- JACO kit sits in the overland / recovery gear class rather than a glovebox pencil
- Fewer electronics to fail in dust and weather than a full digital manifold
Watch-outs · not ideal when
- Needs a plan to air back up — this is not a compressor
- Hose spaghetti and setup time before the first dump
- Easy to overshoot target PSI if you walk away from a wide-open dump
- Trail abuse (sand, rocks, tossed in a drawer) wears seals and QDs over time
Owner voices
Short takes from public retail reviews — paraphrased or translated when long or non-English; meaning kept close to the original.
“5/5 — When it comes to off-roading, maintaining the right tire pressure is crucial for both performance and safety. The JACO Lightning RX4 Tire Deflator with Gauge has revolutionized my off-road preparations, making t…”
“5/5 — I'm a photographer who often finds myself driving rocky roads in the mountains. The quickest way to get through the bumps faster is by airing down my tires. I've used a variety of deflating tools over the years,…”
“5/5 — I have tried a few different deflators in the past from ones that you just screw on and stop automatically to ones like this with valve stem removals but I think this is so far my favorite. I always felt the nee…”
Gauge accuracy and readability
JACO states the gauge is calibrated to meet ANSI B40.1 accuracy standards and reads up to 60 PSI. That 60 PSI ceiling is the right call for an air-down tool: you are working in the 15–35 PSI band on most off-road tires, so the useful part of the dial sits in the middle of the sweep rather than pinned near the top of the scale.
One owner review specifically calls out the gauge as accurate and well cased, with the hope that the casing keeps it that way. That is the correct instinct. A deflator gauge lives in a bag, gets dropped on gravel, and gets knocked against wheels; a protected movement is what preserves calibration between seasons.
Bleed control: quick-connect and quick-release
The RX4 removes the valve core to deflate, which is the fast method — JACO claims a 200% faster air-down process versus traditional deflation tools. The push-to-lock nozzle is described as an instant locking connection to the tire valve.
The quick-release button detaches from the valve with zero air loss per JACO. In practice, that is the feature that decides whether a deflator is pleasant or infuriating: you want to stop the bleed at your target pressure and get off the valve without a final uncontrolled hiss.
Owner feedback supports this. One reviewer notes the quick connect saves time unscrewing and prevents cross-threading on the valve stem — a real failure mode on brass valve threads. Another, comparing the RX4 to both screw-on auto-stop deflators and other valve-stem-removal tools, says it is their favorite so far and mentions previously feeling the need to double-check screw-on style deflators.
Build, chuck seal, and what's in the box
The body is aluminum, the unit weighs 4 ounces, and it measures 5 x 1.5 x 7 inches. Included components are the RX4 deflator, a protective pouch, a valve tool, and 4 Schrader valve cores.
The spare valve cores matter more than they look. Every air-down cycle removes and reinstalls a core, and cores are the wear item in this whole system. Carrying four spares plus the tool means a leaking or damaged core doesn't end your trail day.
Owners describe the construction as solid with a premium feel, and one notes the core remover and air release mechanisms are well made. JACO backs the tool with a lifetime warranty.
Calibration habits for a gauge like this
Any mechanical gauge drifts. The RX4's ANSI B40.1 claim is a manufacturing spec, not a lifetime guarantee, so treat the reading as a reference you verify rather than an absolute.
Practical routine: check the RX4 against a known-good gauge at your typical trail pressure — say 20 PSI — before a trip, not at 60 PSI where you never operate. Store it in the supplied pouch rather than loose in a recovery bag. Keep the nozzle and valve-core threads clean; grit on the seal is the most common cause of a slow leak at the chuck. And replace cores when they start looking chewed, using the four spares in the kit.
Who it's for
If you air down regularly — rocky mountain roads, sand, washboard trails — the RX4's combination of valve-core removal, a 60 PSI gauge, and a zero-air-loss release is the configuration you want. The 4.8/5 rating across 103 ratings and the current $59.90 price (matching its historical low) make it a reasonable buy at this moment.
If you air down once a year and already own a decent gauge, a $59.90 dedicated tool is harder to justify. But if you have been double-checking a screw-on auto-stop deflator with a separate gauge every time, the RX4 collapses those two steps into one.
Method and sources
This guide is built from product data and list prices pulled from Affiliate Hub at build time, together with owner feedback we summarize on the cards. It is catalog-backed buying help, not a lab ranking of every model.
Read how we test for the protocol behind any measured figures we still cite in Guides & Tips.
